TF1570 - STRUCTURED PTFE FILLED WITH GLASS MICRO SPHERES
Tealon TF1570 | Blue
Tealon TF1570 is filled with glass microspheres and is suitable for aggressive chemical applications. It meets FDA conformance for service within food and pharmaceutical applications. TF1570 is the preferred material for fragile flanges, glass lined equipament or other applications that require higher compressibility.
Approvals: TA-Luft — FDA — Blow-Out — ABS — EU 1935/2004
Hot Compression Test
This performance test measures the behavior of rPTFE and PTFE gaskets in a real world environment. The chart below shows a comparison between conventionally skived PTFE and Tealon. The gaskets we tested simulated a real world application including thermo-cycling. The skived PTFE gasket showed a very high leak rate, losing 60% of its initial pressure by the end of the test.

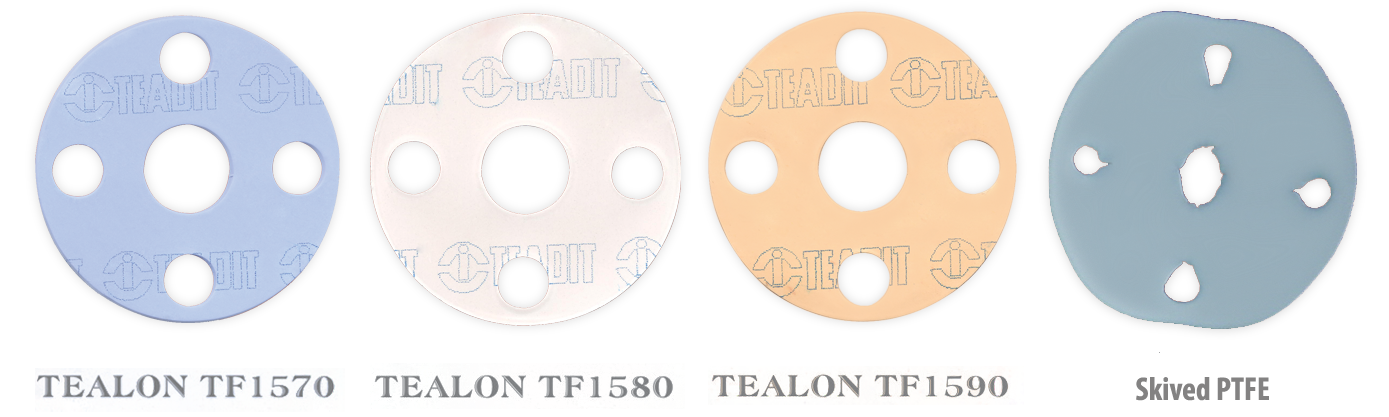

The Tealon gasket lost only 6% of its initial pressure by the end of the test and showed a leak 10 times less than that of the skived PTFE gasket. The pictures below, show the gaskets after the test and exhibit the dimensional stability of Tealon as compared to the noticeable creep of the skived PTFE gasket.

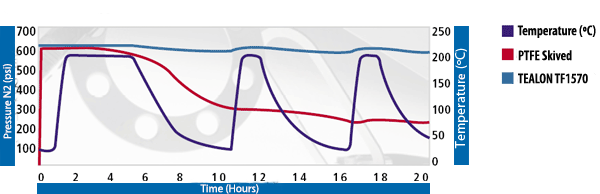

Thermo-Cycling Leak Test
Temperature cycles from 30ºC to 200ºC, with seating stress of 5000psi and using a gasket thickness of 1/8".
Thermo-Cycling Leak Test Condition
| Operating Parameters | TF1570 | TF1580 | TF1590 | |
|---|---|---|---|---|
| Temperature | -268 to 260 ºC | |||
| Max. Pressure | 55 bar (800 psig) | 83 bar (1200 psig) | 83 bar (1200 psig) | |
| Pressure x Temperature - bar x ºC | Thickness 1/16" | 12.000 | ||
| Thickness 1/8" | 8.600 | |||
| Sheet Size | 1500 mm x 1500 mm | |||
| Availability | 0,5 mm up to 3,2 mm | |||
| Composition | PTFE with glass microspheres | PTFE with barium sulfate | PTFE with silica | |
| Physical Property | Type of Test | TF1570 | TF1580 | TF1590 |
|---|---|---|---|---|
| Color | Blue | White | Fawn | |
| Sealability (ml/h) | ASTM F 37A | 0.12 | 0.04 | 0.20 |
| Creep Relaxation (%) | ASTM F 38 | 40 | 24 | 18 |
| Compressibility(%) | ASTM F 36M | 25-40 | 4-10 | 5-15 |
| Recovery Min. (%) | ASTM F 36M | 30 | 40 | 40 |
| Tensile Strength (MPa) | ASTM F 152 | 14 | 14 | 14 |
| "m" and "y" factor | |||
|---|---|---|---|
| Product | Thickness (mm) |
"m" | "y" (psi) |
| TF1570 | 1.5 | 2 | 1,500 |
| 3 | 2 | 1,500 | |
| TF1580 | 1.5 | 2 | 1,800 |
| 3 | 2 | 1,500 | |
| TF1590 | 1.5 | 4.4 | 2,500 |
| 3 | 3.5 | 2,000 | |
ASTM tests are based on 1/32" sheet thickness.
